Decoding C3: Unveiling the Secrets of Bearing Codes.

Understanding Bearing Codes: A Deep Dive into C3

Bearings are fundamental components in countless machines, enabling smooth and efficient rotational movement. But have you ever noticed the cryptic alphanumeric codes stamped on them? These codes, often overlooked, hold a wealth of information about the bearing's characteristics and suitability for specific applications. Among these codes, C3 is a particularly common designation, indicating a specific internal clearance. This article will demystify the C3 bearing code, exploring its meaning, implications, and practical applications.

What Does C3 Actually Mean?

The C3 designation refers to the internal radial clearance of the bearing. Internal clearance is the amount of play or looseness between the rolling elements (balls or rollers) and the inner and outer races of the bearing. This clearance is crucial for proper bearing function, as it allows for thermal expansion, lubrication, and slight misalignment. Bearings are manufactured with different levels of internal clearance, categorized by codes like C2, C3, C4, and C5, with C3 representing a clearance that is greater than normal (CN or Normal) clearance.

Why is C3 Clearance Important?

The choice of bearing clearance is critical for optimal performance and longevity. A C3 bearing, with its larger internal clearance, is typically selected for applications where the bearing will experience significant temperature variations or operate under interference fit conditions. When a bearing heats up, the inner race expands more than the outer race, reducing the internal clearance. If the initial clearance is too small, the bearing can become preloaded, leading to increased friction, heat generation, and premature failure. Similarly, an interference fit, where the inner race is slightly larger than the shaft it's mounted on, reduces the internal clearance. C3 bearings compensate for these effects, ensuring that the bearing operates with the appropriate clearance under operating conditions.

Applications Where C3 Bearings Shine

C3 bearings find widespread use in various industrial applications. They are commonly employed in electric motors, gearboxes, pumps, and other machinery that generate heat during operation. High-speed applications also often benefit from C3 clearance, as the increased speed can lead to higher operating temperatures. Furthermore, C3 bearings are frequently used in applications where misalignment is a concern, as the larger clearance provides some tolerance for angular or axial deviations. Consider a scenario where a motor is directly coupled to a pump. The heat generated by both the motor and the pump can cause significant temperature increases in the bearings. Using C3 bearings in this application helps to prevent preload and ensure reliable operation.

Beyond C3: Understanding Other Clearance Codes

While C3 is a common designation, it's important to understand the other clearance codes as well. CN (or Normal) clearance is the most common type and is suitable for a wide range of applications. C2 bearings have a smaller clearance than CN, while C4 and C5 bearings have progressively larger clearances. The selection of the appropriate clearance depends on a careful analysis of the operating conditions, including temperature, speed, load, and mounting method. Consulting bearing manufacturers' catalogs and engineering guidelines is crucial for making the right choice. Proper bearing selection is paramount for ensuring the reliability and efficiency of any rotating machinery.

Decoding the Full Bearing Code

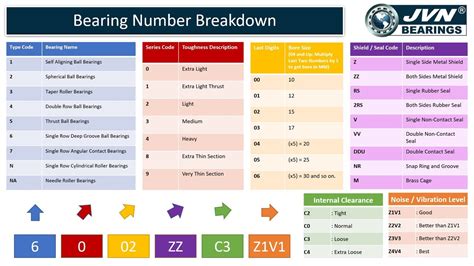

The C3 designation is just one part of the complete bearing code. Other elements of the code provide information about the bearing's type (e.g., ball bearing, roller bearing), bore diameter, series, and special features. For example, a bearing code might look like this: 6205-2RS-C3. In this code, 6205 indicates the bearing type and size, 2RS signifies that the bearing has rubber seals on both sides, and C3 denotes the internal clearance. Understanding the entire bearing code allows engineers and technicians to accurately identify and specify the correct bearing for their application. Careful attention to detail when selecting bearings can significantly improve machine performance and reduce downtime.

```
